Features and Benefits
-
Sunlight Readable
-
Anti-Reflective Glass
-
5 Soft Keys
-
Video Input
-
Cabin Or Panel Mount
MMX LCD4K5
MMX LCD4 Display unit is very modern looking, cost-efficient, rugged 4.3” operator control panel for use on heavy-duty vehicles and work machines that must operate outdoor in harsh conditions. It is fully equipped with five soft-function keys, integrated buzzer, CAN bus and video inputs.
The display can be installed in-dash or out-dash with its specific articulated support.
| POWER | |
| Supply Voltage | 8-32 V DC |
| Current | 250 mA maximum, no outputs active |
| Electrical Protection | overvoltage, transients, reverse polarity |
| INTERFACES | |
| CAN | 2 x CAN BUS ISO 11898, 2.0B high speed |
| Video | 1 x PAL/NTSC |
| USB | 1x USB 2.0, for firmware update |
| ENVIRONMENT | |
| IP Class (IEC 529) | IP65 |
| EMC Conformity | EN61000-6-2 noise immunity EN61000-6·4 radiation of interference |
| Temperature Range | Storage from -40° to +75°C Operating from -30° to +75°C |
| Operating system | Linux embedded |
| DISPLAY | |
| Display type | Active matrix colour TFT LCD 4.3 inch , 16.2M colours, sunshine-readable, anti-reflective glass |
| Resolution | 480 x 272 pixels, dot pitch 0.198,16:9 |
| Viewing angle | 80° |
| Luminance | 800 cdm, |
| Contrast ratio | January 24, 1900 |
| Boot time | < 3 sec. |
| FEATURES | |
| Keys | 5 soft keys, backlit |
| Touch | optional, resistive |
| Acoustic signal output | integrated buzzer max 85 dB |
| Inputs | 2 Software configurable |
| Outputs | 4 digital high side |
| ENCLOSURE | |
| Housing Material | black rubber housing |
| Mounting | in-dash with springs or out-dash with articulated support |
| Matting Connector | Tyco-AMP Ampseal 1437288-6, 26 way |

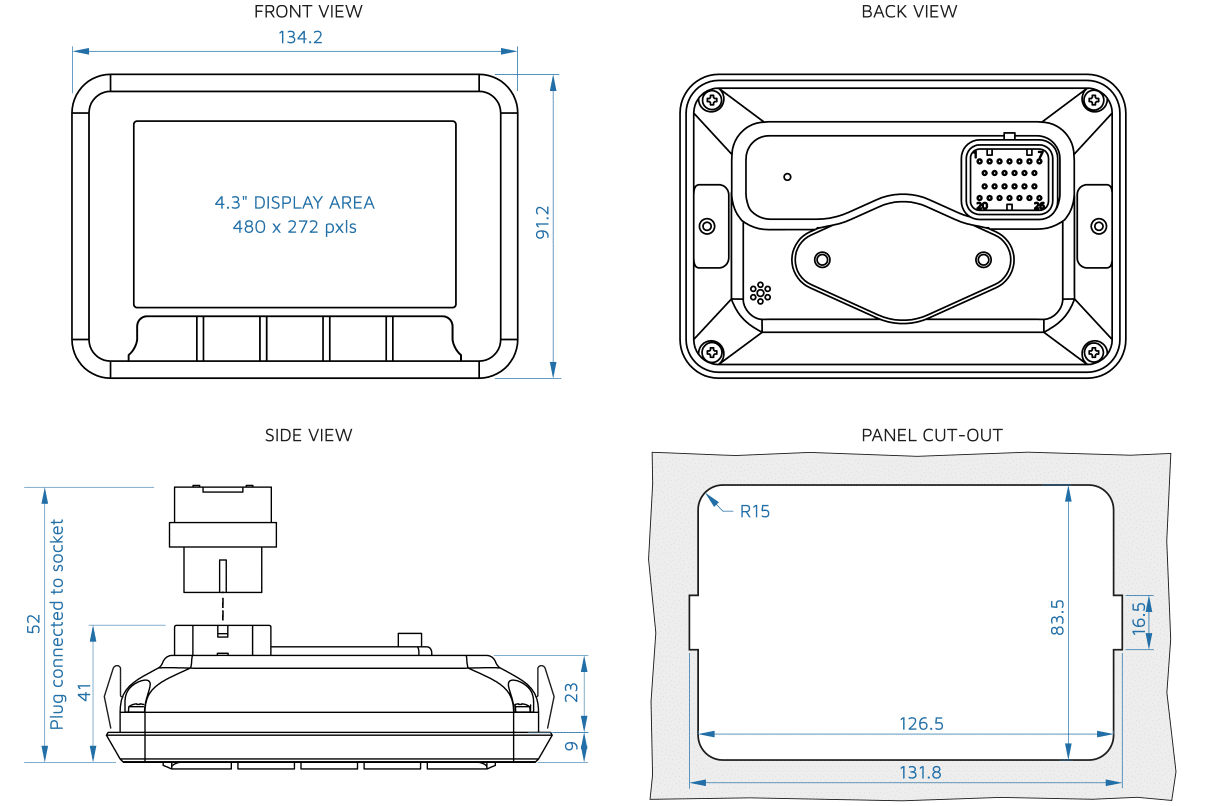

| SIZE AND WEIGHT | |
| W x H X D [mm] | 134 x 91 x 33, without matting connector |
| Weight | 250 g |
| MMXLCD4K5 | 4.3” LCD Control panel with 5 Keys, no touch |
|---|---|
| For more options please contact the supplier. |
