Key Features
-
7” High-Resolution TFT Display
-
High-Brightness IPS Panel with
-
Wide Viewing Angle 178
-
10 Soft Keys + PCAP Touch
-
Automatic Brightness Control
-
Robust Automotive Design
-
IP Video for Multiple Cameras
-
CAN Bus Communications

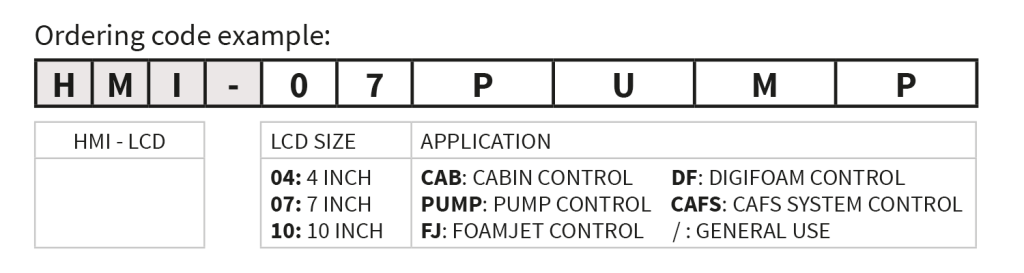

HMI-07xx-02
The HMI-07xx-02 is a 7-inch industrial Human Machine Interface designed for control and monitoring applications in special vehicles and mobile machinery. The unit features a high-brightness TFT IPS display, robust front protection and CAN-based communication interface for integration with Emitter control systems – MMX. Includes integrated ambient light sensor for automatic brightness control. One or multiple IP cameras can be connected via Ethernet input.
Ideal for cabin and machine-side operation
Suitable for installation inside the vehicle cabin or on the external operator panel, enabling direct control of pump systems, pressure governors, superstructure indicators and parameters, valve actuation, lighting control and system diagnostics, ensuring intuitive and reliable operation in all working conditions.
| POWER | |||
| Supply Voltage | 6-36 V DC (nominal 12 VDC or 24 VDC) | ||
| Current | 0.85 A @ 12V and 0.45 A @ 24V maximum, no outputs active | ||
| Electrical Protection | overvoltage, transients, reverse polarity, load dump | ||
| INTERFACES | |||
| CAN | 2x CAN | ||
| Video | 1x USB 2.0, for firmware update | ||
| USB | 10/100 Mbps for IP video cameras | ||
| FEATURES | |||
| Kernel | NXP™ ARM 64-bit 1200Mhz, 8 Gbyte | ||
| Display | TFT IPS 7”, 1000:1, Brightness 800 cd/m2, 800x480, viewing angle ±88° | ||
| Protective glass | 1.8 mm Anti-Glare, Hardness 6H | ||
| Touch screen | multi-touch PCAP touch screen | ||
| Keypad | 10 soft keys (programmable), backlit | ||
| Buzzer | Yes | ||
| Day/Night operation | automatic – integrated ambient light sensor | ||
| I/O | |||
| Config. Inputs IN1-IN2 | 5 V/32 V, 0-30 mA, 0-2.4 kΩ, Frequency measurement 1 Hz-50 kHz | ||
| Digital Outputs OUT1 – OUT 2 | Positive switching (high-side), max. 1 A, PWM 1-5 kHz | ||
| ENVIRONMENT | |||
| IP Class (IEC529) | IP65, IP66 and IP67 | ||
| EMC Conformity | ISO 7637-2:2011, ISO 16750-2:2012, ISO 10605:2008, ESD Immunity | ||
| Temperature Range | storage -40° to +85°C (-40° to 185°F) operating -40° to +85°C (-40° to 185°F) | ||
| ENCLOSURE | |||
| Housing Material | PBT + PC plastic, flame retarded | ||
| Mounting | RAM mount arm or mounting bracket | ||

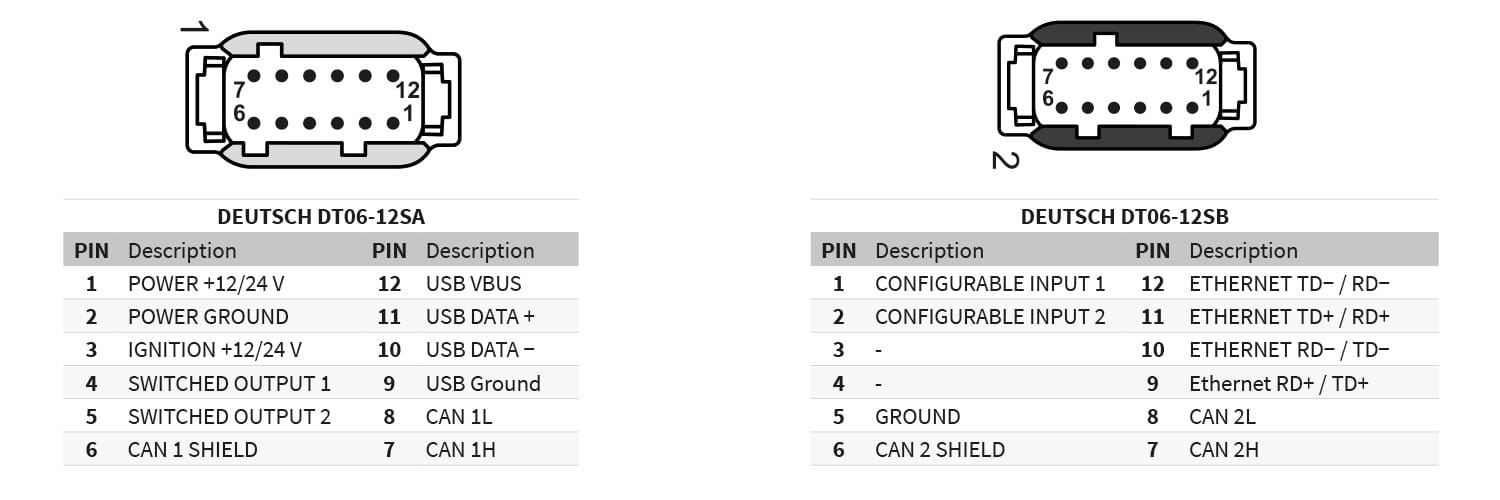

| Mating Connector | Deutsch DT06-12SA and DT06-12SB | ||
| SIZE AND WEIGHT | |||

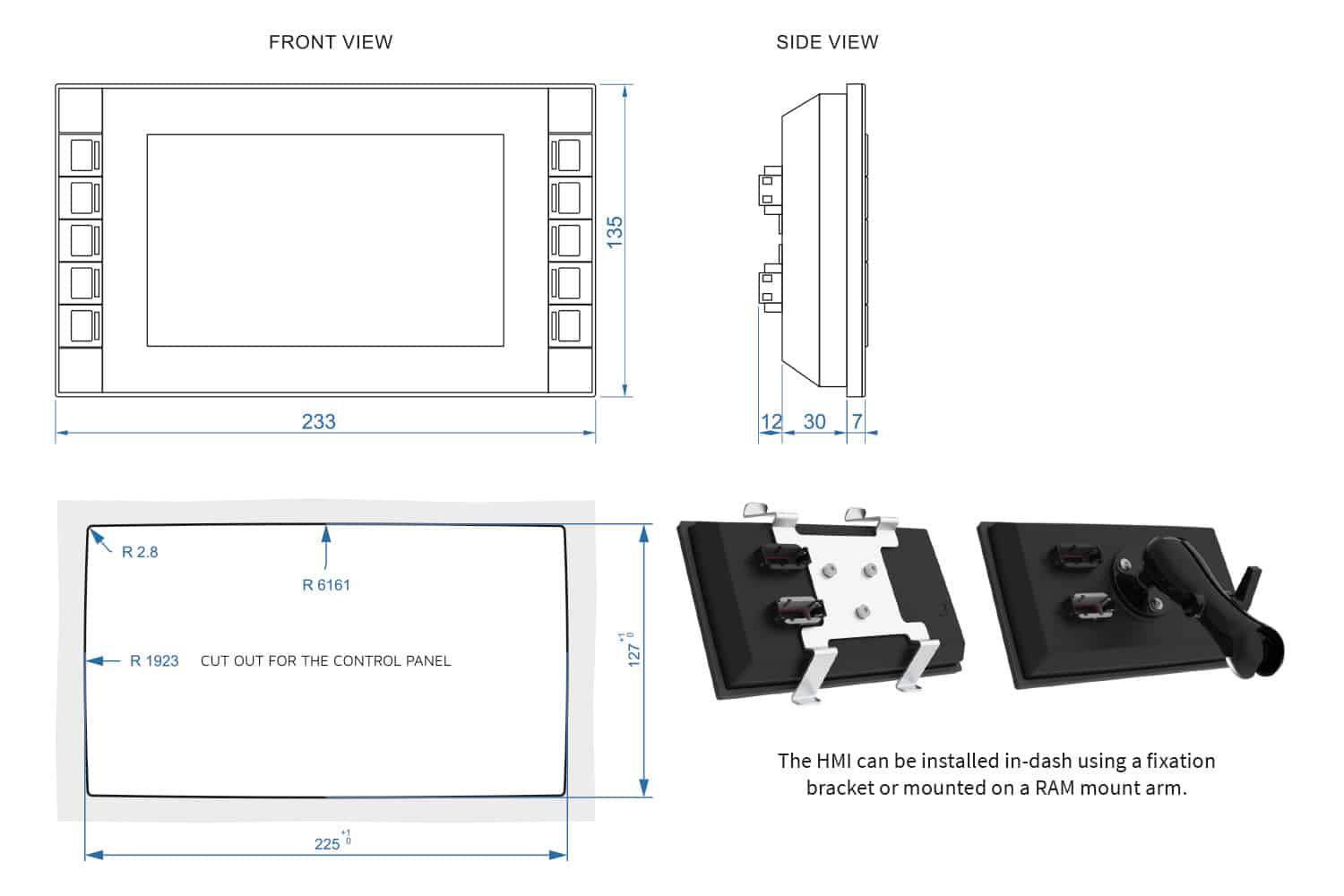

| W x H X D [mm] | 233 x 135 x 49 mm, without mating connector | ||
| Weight | 700 g |
Product flyer
Product flyer with datasheet
