KPM-GC4J2

Features and Benefits

  • Integrated 2 Joysticks – 4 Way with Limiter
  • White and RGB Backlit Keys with Green LED Signal Indicator
  • Freely Selectable Icons
  • CAN Bus Datalink
  • Super Bright LEDs, Sunlight Readable
  • Washable, Waterproof Aluminium Housing
Keypad module KPM-RC4J2 uses two 4-way Joysticks specifically engineered for demanding vehicle applications and 4 distinct keys. It is highly resistant to weather conditions and can survive extreme environments, what makes it perfect for installation outside or inside driver cabin. The keys are large, well-spaced and embossed, allowing a reliable pressure sensation with a tactile feedback even when wearing protective gloves. Each key has a large red LED signal indicator above the icon. Since the KEY backlit LED are white and RGB (colour) the keypad can be used as combination of buttons and warning light indicators.

POWER
Supply Voltage8-32 V DC
Current0.5 A maximum, no outputs active
Electrical Protectionovervoltage, transients, reverse polarity, load dump
INTERFACES
CAN1 x CAN
CAN terminationconfigurable termination 120 ohm via DIP switch
CAN LinkT-connection, node ID definition via software
ENVIRONMENT
IP CLASS (IEC529)IP67, waterproof
EMC ConformityEN61000-6-2 noise immunity
EN61000-6-4 radiation of interference
Temperature Rangestorage from -40° to +85°C
operating from -40° to +85°C
KEYS
Key LEDfirst row RGB and white backlit, second row white backlit
Signal IndicatorSuper bright green LED bar
Iconsfreely selectable icons
Key Designembossed keys with tactile feedback, operating force 8N
Operating Life>250.000 cycles
KEY dimension23.5 x 23.5 mm
JOYSTICS
Level Action 4-way with 4-way Limiter, spring centering
Operating Force5 N +/- 1N
Max. LoadVertical 200 N, Horizontal 150 N
Angle of Movement+/- 15°
Operating Life>300.000 cycles
ENCLOSURE
Housing MaterialAluminium, Joystick - Silicone
Mountingin-dash, with 4 screws M4 or 3.5 mm (#8) tapping screws
ConnectorsDeutsch DT06-06S

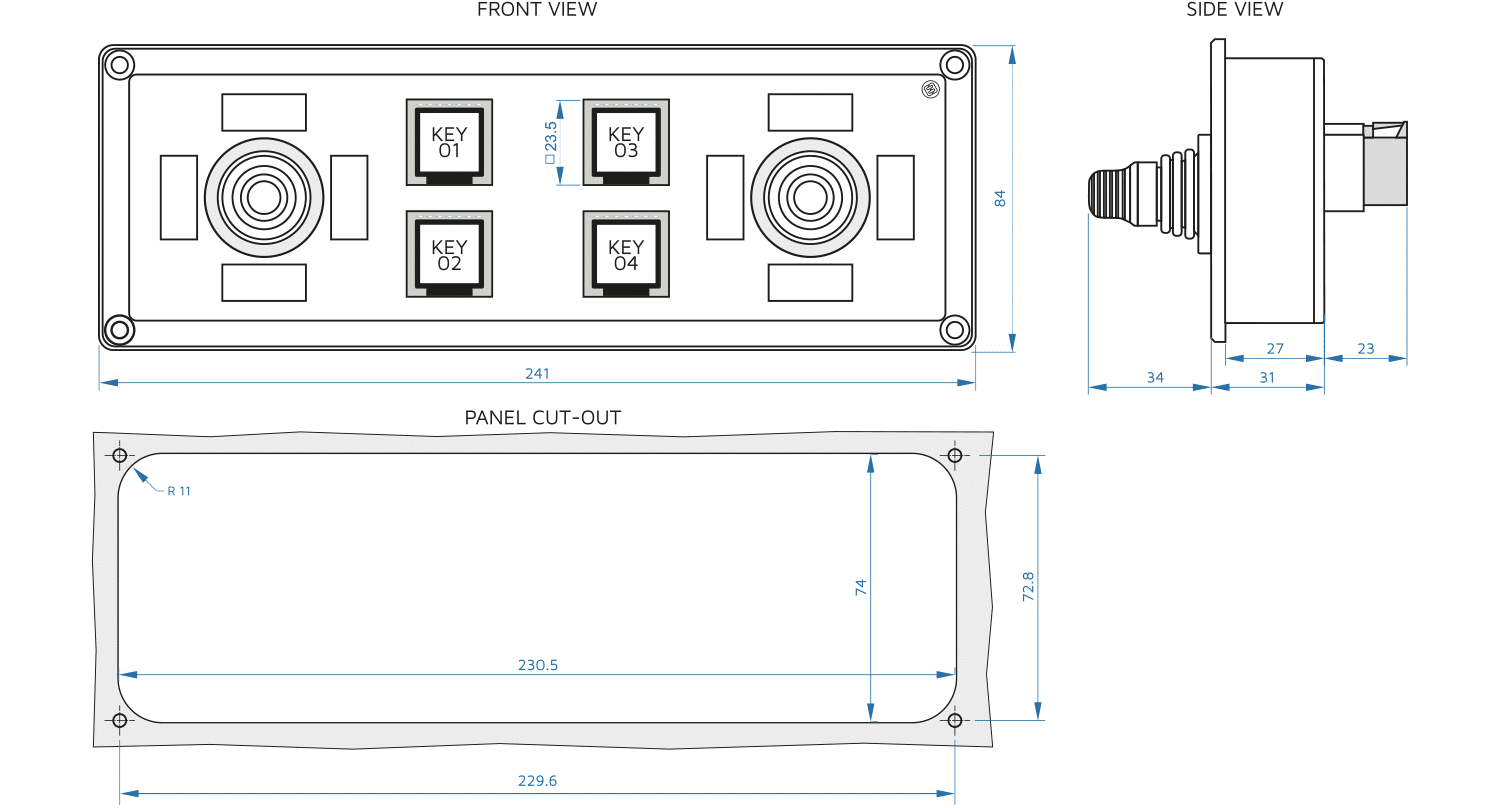

SIZE AND WEIGHT
W x H X D [mm]241 x 84 x 33 mm without connector
Weight0.75 kg

KPM-GC4J2Keypad module, 2 Joysticks, 4 keys, white and RGB backlit with green signal indicator
For more options please contact the supplier.
