Features and Benefits

  • RGB Backlit, Freely Selectable Icons
  • Integrated I/O Driver – Optional
  • Light Sensor, Buzzer
  • Individually Adjustable Key Luminous Intensity
  • Low Installation Depth
  • “RIM” Embossing Keys
  • Washable, Waterproof Aluminium Housing
Keypad module KPM-C26 uses twelve distinct keys, it is highly resistant to weather conditions and can survive extreme environments, what makes it perfect for installation outside or inside driver cabin. The keys are large, well­spaced and “RIM” embossed, allowing a reliable pressure sensation with a tactile feedback even when wearing protective gloves. The keys can also be used in combination as warning lights.
Type KPM-C26O has an integrated I/O controller with high side power outputs and several inputs that can be useful if the keypad is used as a stand-alone device or as an extension of IO ports for controllers used in the MMX system.
Keypad is user programmable. Each key can be configured to operate as a switch, push button or both as a special feature. Corresponding key LED indicators are fully configurable, colour and luminance are adjustable. Key label graphics are customizable and backlit coloured according to function groups for easy recognition. Unused keys can be screened off with a dark label. Labels are inserted at the inner side of the front panel of the keypad. Several keypads located on different places can be connected over CAN BUS to collaborate. Keypad modules series KPM-C are a perfect solution in automotive, nautical, agriculture, utility vehicles and industrial sectors.

Supply Voltage8-32 V DC
Current130 mA maximum
Electrical Protectionovervoltage, transients, reverse polarity, load dump
CAN termination120 ohm, DIP switch
IP Class
with terminal block connectionfront panel - IP67, back - IP51
with Deutsch DT06-6S connectorcomplete IP67
EMC ConformityEN61000-6-2 noise immunity
EN61000-6·4 radiation of interference
Temperature Rangestorage from -40° to +85°C
operating from -40° to +85°C
Key LEDRGB backlit icons
Iconsfreely selectable icons
Brightnessindividually adjustable key luminous intensity, dimmable - light sensor
Key DesignRIM-embossed keys with tactile feedback, operating force 8N
Operating Life>250.000 cycles
KEY dimension18 x 18 mm

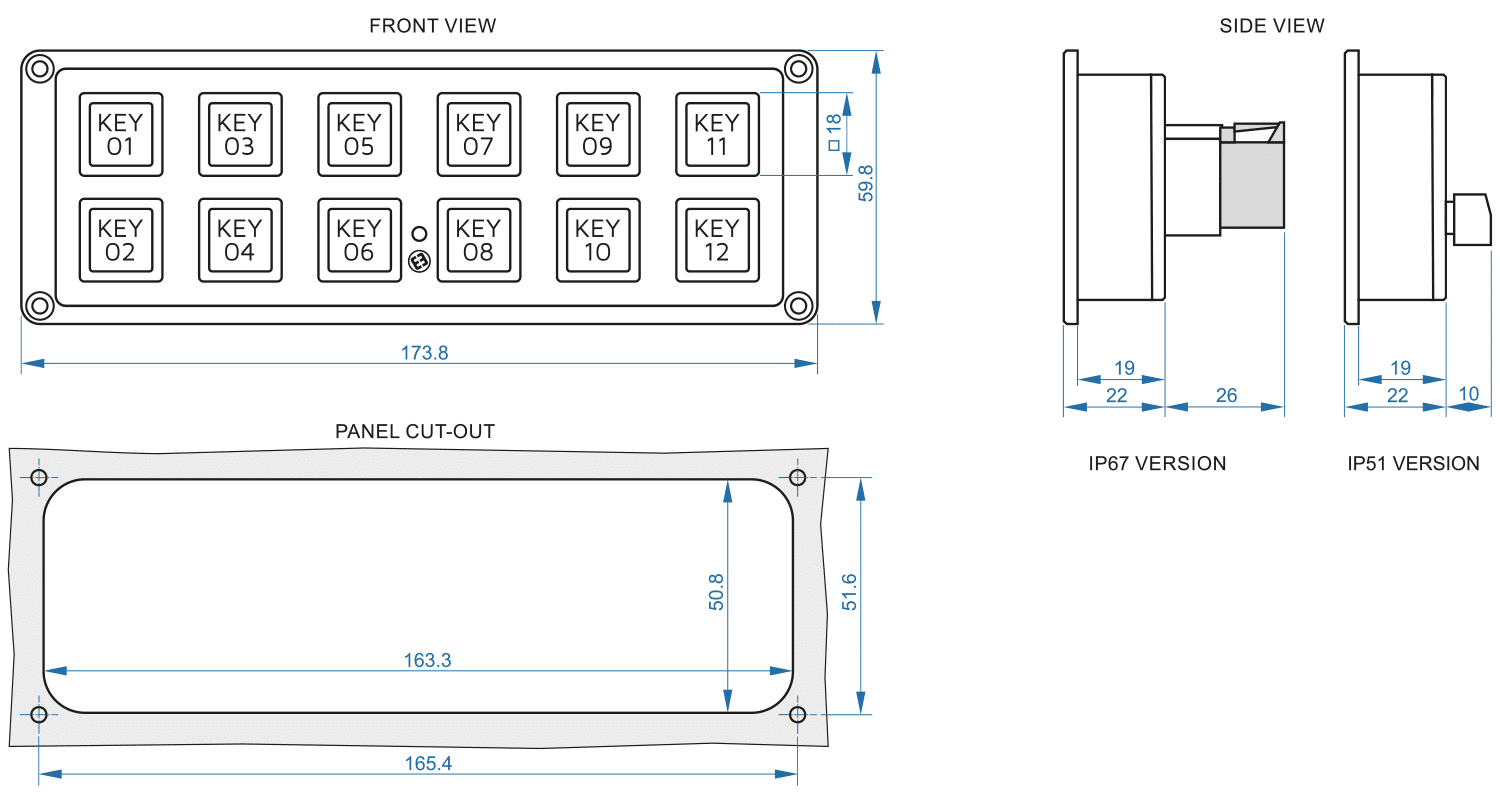

W x H X D [mm]173.8 x 59.8 x 19 without connector
Weight0.23 kg (IP51), 0.3 kg (IP67)
Housing MaterialAluminium
Mountingin-dash with 4 screws M3 or 2.9 mm tapping screws

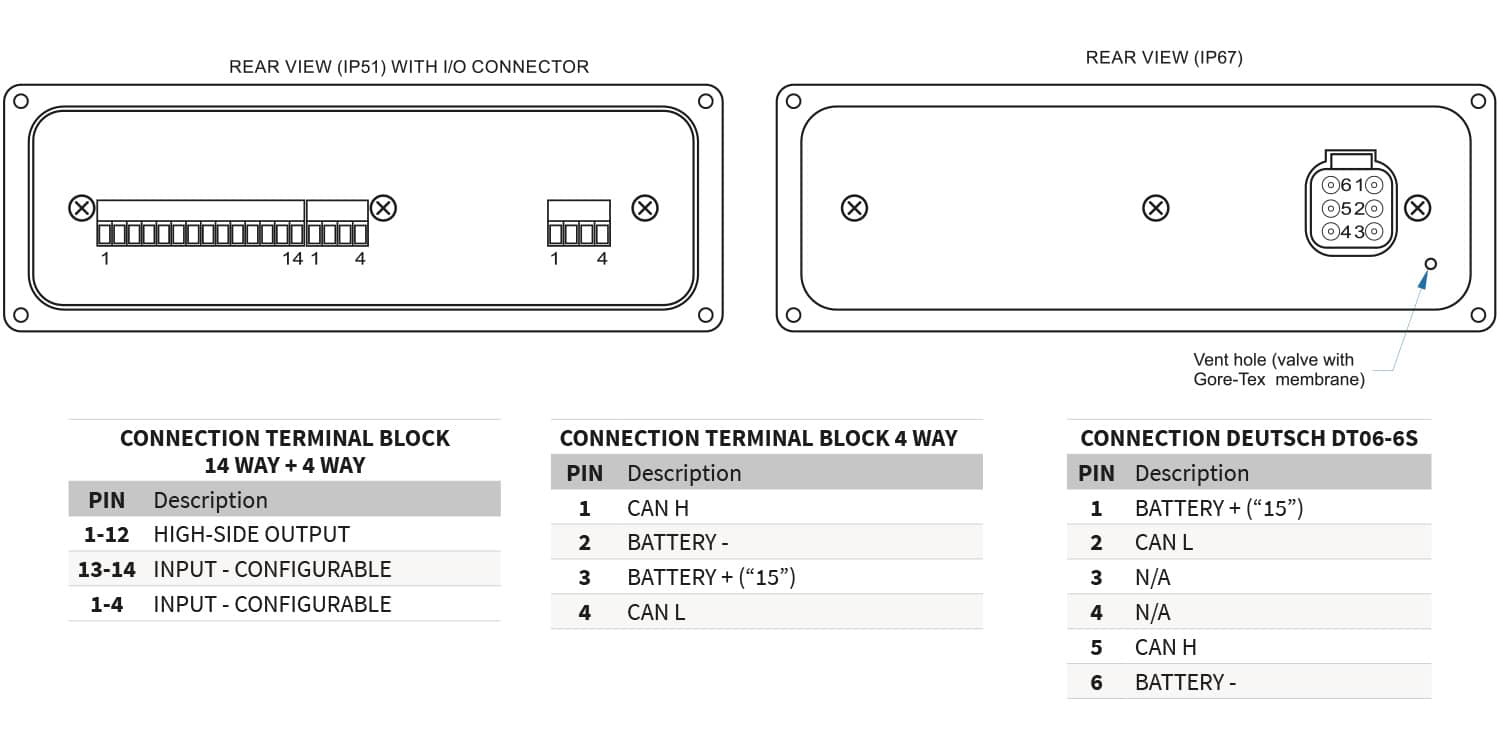

Connectors4 way terminal block or Automotive - Deutsch DT06-6
Power Supply/Can
I/O14 way + 4 way Terminal Block
I/O - Only version with integrated IO driver
Digital Inputs6x configurable active low/high levels via software, 0 .. Ub, switch on level >4.6V, switch off level <2V, integrated pull-up/down resistor, protected
Digital Outputs12 x positive switching (high-side), max. 1.5 A, total output from the unit may not exceed 8 A
Loadsinductive, capacitive, resistive
Miscellaneousprotection from short circuit and overload

KPM-C26Keypad module, 12 colour-RGB backlit keys, (2 rows x 6 columns), IP51 connector
KPM-C26OKeypad module, 12 colour RGB backlit keys, (2 rows x 6 columns) with integrated IO driver, IP51 connector
For more options please contact the supplier.
