Tank Level Gauge TLG Small, TLGS/INS/RIS

Features and Benefits

  • 180° Viewing Angle
  • I/O Driver For Low Water Warning, Autofill-Hysteresis, Mute Input, Etc.
  • CAN Bus Interface
  • Super Bright LEDs
  • Dimmable-Light Sensor, Backlit
  • Low Installation Depth
  • Multiple Sensor input
INS-08 types of Tank Level Gauges are designed to display liquid’s volume at an accuracy of 1/8 of the tank level using ultra-bright LEDs. The transducer measures the column of the liquid in the tank above the sensor process input and provides a signal that is proportional to the tank high. The unit standardly uses a pressure transducer with output 0.5-4.5 V. The sensor input is widely configurable and it can also be used for 0-10 V transducers, 4-20 mA transmitters or even resistive probe.
The Tank Level Gauge can be used as a stand-alone system or as a part of MMX system connected via CAN bus to IO Controller. Several slave indicators (remote – RIS) can be connected to a master indicator INS to show the same value on different locations or in combination with a XL remote indicator (RIXL) for the vehicle sides.
Primary / Remote unit self-configuration
Each standard INS-08 indicator can operate as a primary or as a remote. If the indicator detects a pressure sensor (0.5-4.5 or 4-20 mA) the unit will work as a primary indicator. If the indicator is configured for a 0-10V sensor, this is not possible, in this case the indicator is factory-set to primary unit.
Output Driver
Optionally, an I/O driver can be integrated for the low-level warning output, autofill-hysteresis output, mute input, etc.

POWER
SUPPLY VOLTAGE8-32 V DC
CURRENT0.5 A Maximum, no outputs active
ELECTRICAL PROTECTIONovervoltage, transients, reverse polarity, load dump
INTERFACES
CAN1 x CAN
CAN TERMINATION120 ohm, DIP switch
I/O
SENSOR INPUT0.5-4.5 V, 0-5V, 0-10V, 4-20 mA, resistive probe
DIGITAL INPUTconfigurable active low/high levels 0..Ub with solder pad on PCB, protected
DIGITAL OUTPUT*Only version with integrated I/O driver
OUT1positive switching (high-side), max. 2 A
(Low water warning)
OUT2positive switching (high-side), max. 2 A
(Autofill-Hysteresis xx/xx%)
OUT3-OUT4positive switching (high-side), max. 2 A
OUT5-OUT6negative switching (low-side), max. 0.5 A
LOADSinductive, capacitive, resistive
Miscellaneousprotection from short circuit and overload
ENVIRONMENT
IP CLASS (IEC529)front panel IP67, back IP20
EMC CONFORMITYEN61000-6-2 noise immunity
EN61000-6-4 radiation of interference
TEMPERATURE RANGEstorage from -40° to +85°C (-40°F to 185°F)
operating from -40° to +85°C (-40°F to 185°F)
ENCLOSURE
HOUSING MATERIALaluminium
MOUNTINGin-dash, with 4 screws M3 or 3.5 mm (#8) tapping screws
CONNECTORterminal block 4 or 14-way depending of options selected
MISCELLANEOUS
Indicator increments1/8 Standardly, 1/4 optional
Day/Night operationautomatic – integrated light sensor
Front panelbacklit, colour coded for water and foam
Detectable substanceswater, fire-smothering foam, gasoline, etc
Transducer-OEM
Transducer pressure range0-600 mbar (0 - 6 m tank height)
Transducer signal output0.5-4.5 V
Transducer materialStainless steel 316L
Transducer pressure port1/4” with adaptor 1/2” fitting
Transducer cable3 x 0.35 mm2 with M12 connector, 5, 10 or 15 m length

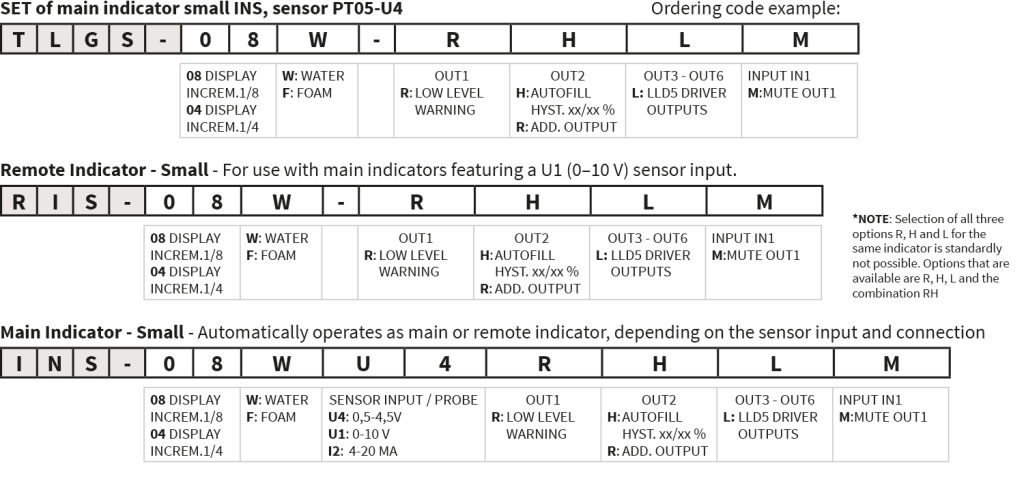

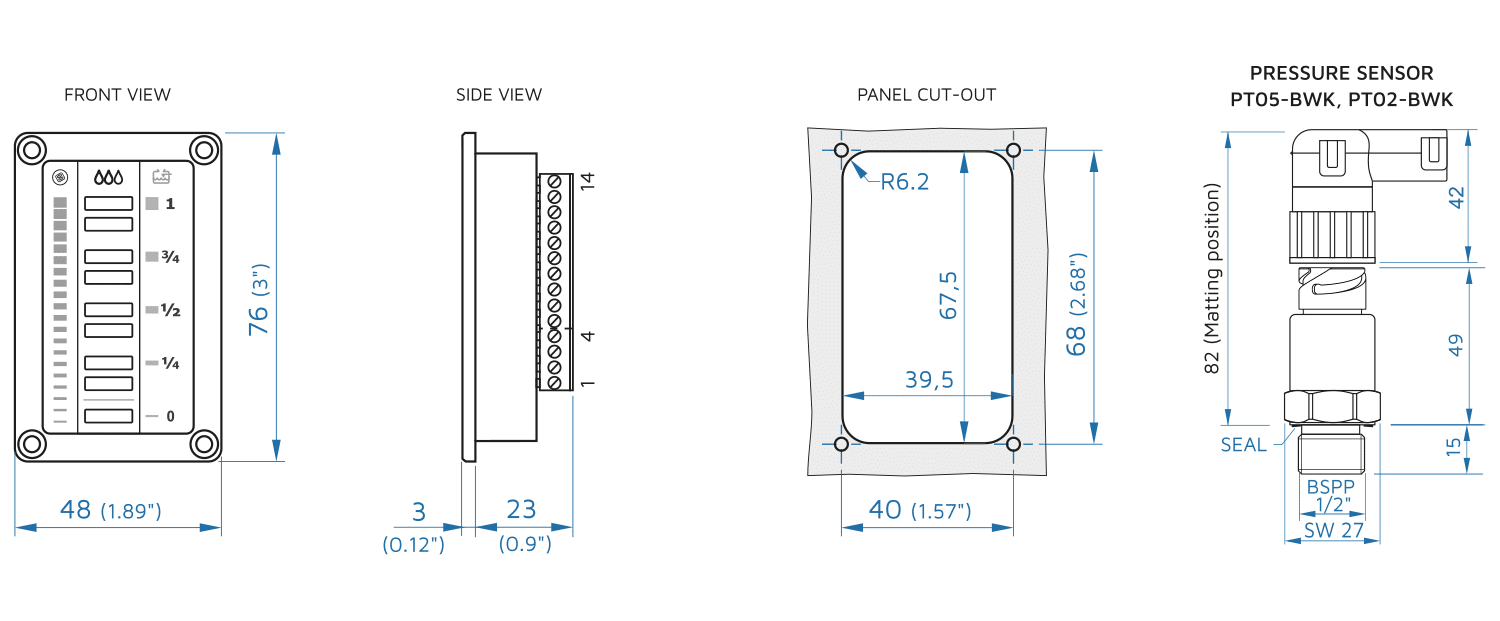

SIZE AND WEIGHT
W x H x D48 x 76 x 26 mm (1.9” x 3” x 1”) with connector
WEIGHT0.10 kg (0.55 lbs)
