XL Remote indicators narrow, RIXLN

Features and Benefits

  • Powerful Luminous Flux
  • Colour-Coded LED for Water and Foam Display
  • Five Different Level Patterns
  • CAN Bus or “T” Datalink
  • Low Installation Depth
  • Waterproof Aluminium Housing
The XL Remote Tank Indicator RIXLN types are designed to display water or foam tank level, possible to be seen from a long distance. Blue, yellow and red LEDs are used for displaying water level and amber, yellow and red LEDs for foam. When the tank level is critical (liquid level less than 1/4) both indicators signalize the level with red colour LEDs, when the liquid level is less than 1/8 lights are running from top to bottom to signalize an empty tank.
The RIXLN needs to be connected either to a master indicator or to an IO node/controller when used in MMX configuration. Large tank indicator is a slave device. Several slave indicators can be connected over Can bus or “T”- one wire datalink to show the same value on different locations.
Housing is made of Aluminium, highly resistant to weather conditions (IP67) and can survive extreme environments, what makes it perfect for installation outside the vehicles. The level bars are large and well-spaced, allowing a reliable reading of level in bright viewing angle and direct sunlight.
Specifications

POWER
Supply Voltage10-30 V DC
Current1.5 A maximum
Power16 W maximum
Electrical Protectionovervoltage, transients, reverse polarity, load dump
INTERFACES
CAN1 x CAN
T – one wire1 x serial communication - optional
ENVIRONMENT
IP Class (IEC529)IP67, waterproof
EMC ConformityEN61000-6-2 noise immunity
EN61000-6·4 radiation of interference
Temperature Rangestorage -40° to +85°C (-40°F to 185°F)
operating -40° to +85°C (-40°F to 185°F)
ENCLOSURE
Housing MaterialAluminium, glass
Mountingin-dash, with 4 screws M3 or 3.5 mm tapping screws

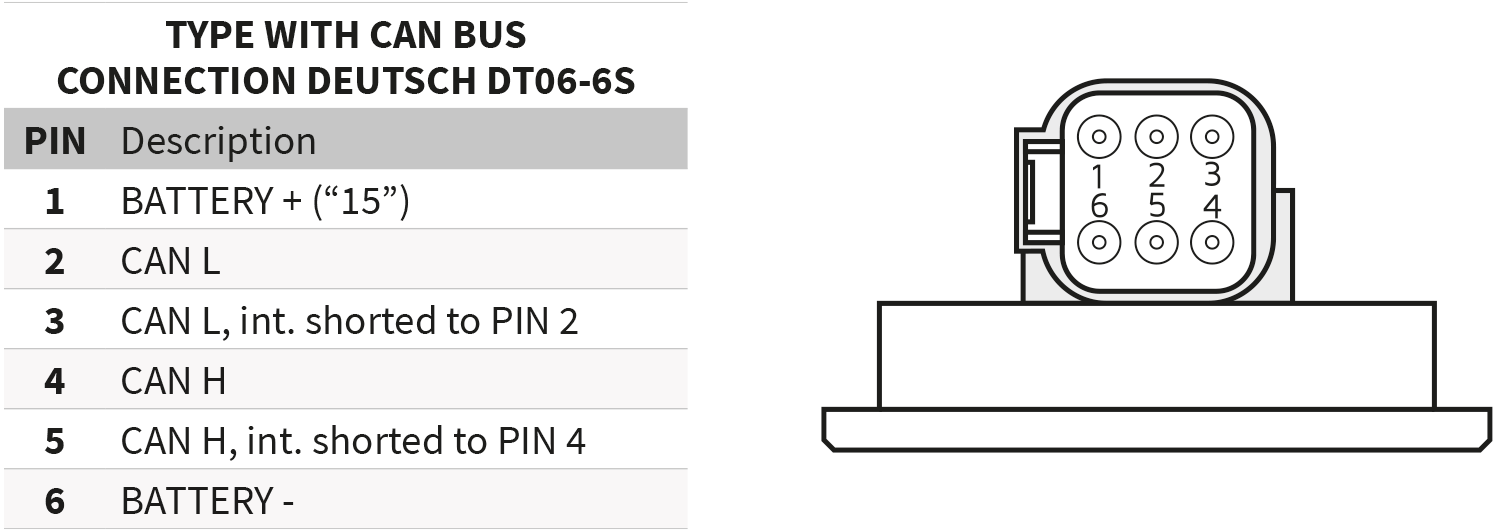

ConnectorDeutsch DT06-6S
MISCELLANEOUS
Indicator increments0, 1/4, 1/2, 3/4, Full
LEDs colour water type24 red, 24 yellow and 48 blue
LEDs colour foam type24 red, 24 yellow and 48 amber
SIZE AND WEIGHT
W x H X D [mm]66 x 373 x 15 without connector
Weight0.6 kg

How to order
RIXLN-WRYBB-CXL remote indicator narrow, for water, red, yellow, blue LEDs Can-bus datalink
RIXLN-WRYBB-TXL remote indicator narrow, for water, red, yellow, blue LEDs “T” datalink
RIXLN-FRYAA-CXL remote indicator narrow, for foam, red, yellow amber LEDs, Can-bus datalink
RIXLN-FRYAA-TXL remote indicator narrow, for foam, red, yellow amber LEDs, “T” datalink
For more options please contact the supplier.
