KPM-RC26

Features and Benefits

  • White and RGB Backlit with Red LED Signal Indicator
  • Used also as Warning Lights (RGB LEDs Inside)
  • Freely Selectable Icons
  • CAN Bus Datalink
  • Super Bright LEDs, Sunlight Readable
  • Washable, Waterproof Aluminium Housing
Keypad module KPM-RC26 uses twelve distinct keys, it is highly resistant to weather conditions and can survive extreme environments, what makes it perfect for installation outside or inside driver cabin.
The keys are large, well-spaced and embossed, allowing a reliable pressure sensation with a tactile feedback even when wearing protective gloves. Each key has a large red LED signal indicator above the icon. Since the KEY backlit LED are white and RGB (colour) the keypad can be used as a combination of buttons and warning light indicators.
Keypad is user programmable. Each key can be configured to operate as a switch, push button or both as a special feature. Key label graphics are customizable, white backlit and coloured according to function groups for easy recognition. Unused keys can be screened off with a dark label.
Labels are inserted at the inner side of the front panel of the keypad. Several keypads located on different places can be connected over CAN BUS to collaborate. Keypad modules series KPM-RC are a perfect solution in automotive, nautical, agriculture, utility vehicles and industrial sectors.
Specifications
POWER
Supply Voltage8-32 V DC
Current0.5 A maximum, no outputs active
Electrical Protectionovervoltage, transients, reverse polarity, load dump
INTERFACES
CAN1 x CAN
CAN terminationconfigurable termination 120 ohm via DIP switch
CAN LinkT-connection, node ID definition via software
ENVIRONMENT
IP CLASS (IEC529)IP67, waterproof
EMC ConformityEN61000-6-2 noise immunity
EN61000-6-4 radiation of interference
Temperature Rangestorage from -40° to +85°C
operating from -40° to +85°C
KEYS
Key LEDfirst row RGB and white backlit, second row white backlit
Signal IndicatorSuper bright red LED bar
Iconsfreely selectable icons
Key Designembossed keys with tactile feedback, operating force 8N
Operating Life>250.000 cycles
KEY dimension23.5 x 23.5 mm

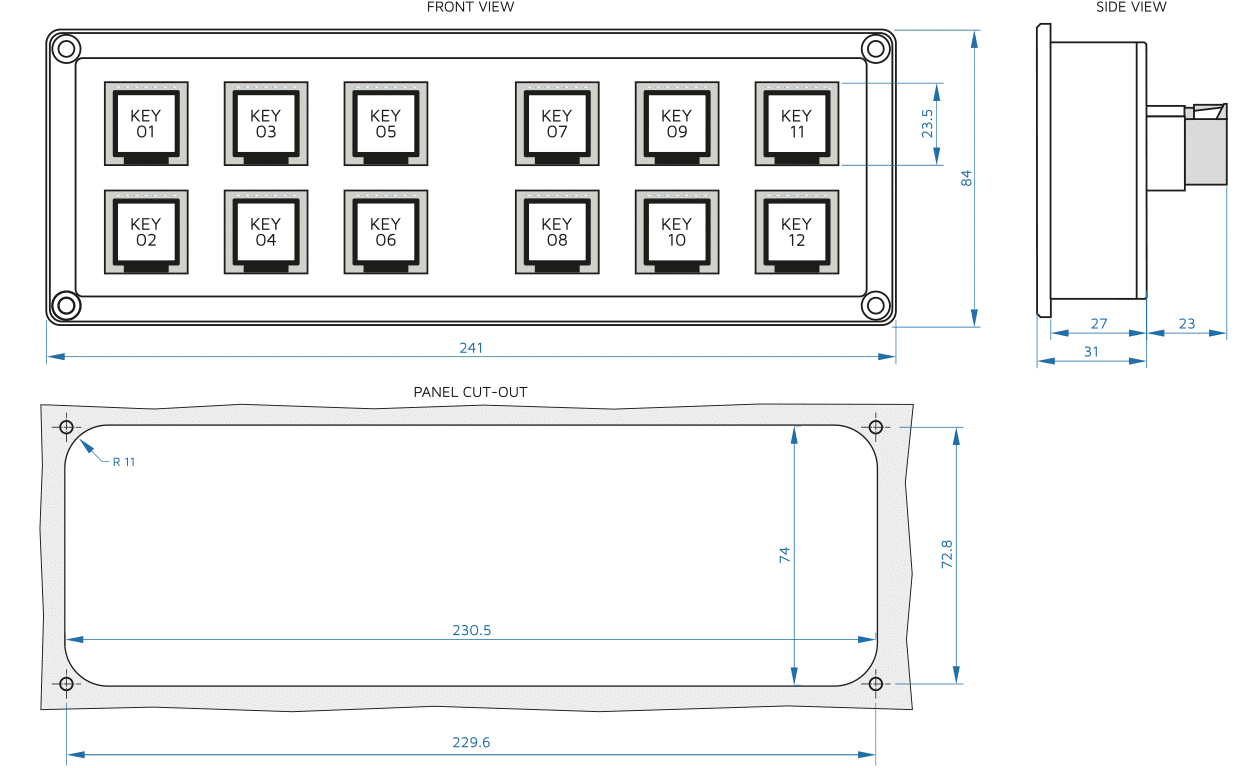

SIZE AND WEIGHT
W x H X D [mm]241 x 84 x 33 mm without connector
Weight0.70 kg
ENCLOSURE
Housing MaterialAluminium
Mountingin-dash, with 4 screws M4 or 3.5 mm (#8) tapping screws
ConnectorsDeutsch DT06-06S
How to order
KPM-RC26Keypad module, 12 keys (2 rows x 6 columns), white and RGB backlit with red signal indicator
For more options please contact the supplier.
