KPM-C22

Features and Benefits

  • RGB Backlit, Freely Selectable Icons
  • Light Sensor
  • Individually Adjustable Key Luminous Intensity
  • Low Installation Depth
  • “RIM” Embossing Keys
  • Washable, Waterproof Aluminium Housing
Keypad module KPM-C22 uses four distinct keys, it is highly resistant to weather conditions and can survive extreme environments, what makes it perfect for installation outside or inside driver cabin. The keys are large, well-spaced and “RIM” embossed, allowing a reliable pressure sensation with a tactile feedback even when wearing protective gloves. The keys can also be used in combination as warning lights.
Type KPM-C220 has an integrated I/0 controller with high side power outputs and several inputs that can be useful if the keypad is used as a stand-alone device or as an extension of I0 ports for controllers used in the MMX system.
Keypad is user programmable. Each key can be configured to operate as a switch, push button or both as a special feature. Corresponding key LED indicators are fully configurable, colour and luminance are adjustable. Key label graphics are customizable and backlit coloured according to function groups for easy recognition. Unused keys can be screened off with a dark label. Labels are inserted at the inner side of the front panel of the keypad. Several keypads located on different places can be connected over CAN BUS to collaborate. Keypad modules series KPM-C are a perfect solution in automotive, nautical, agriculture, utility vehicles and industrial sectors.
Specifications

POWER
Supply Voltage 8-32 V DC
Current 60 mA maximum
Electrical Protection overvoltage, transients, reverse polarity, load dump
INTERFACES
CAN 1 x CAN
CAN termination 120 ohm, DIP switch
ENVIRONMENT
IP Class
with terminal block connectionfront panel - IP67, back - IP51
with Deutsch DT06-6S connectorcomplete IP67
EMC Conformity EN61000-6-2 noise immunity
EN61000-6·4 radiation of interference
Temperature Range storage from -40° to +85°C
operating from -40° to +85°C
KEYS
Key LED RGB backlit icons
Icons freely selectable icons
Brightness individually adjustable key luminous
intensity, dimmable - light sensor
Key Design RIM-embossed keys with tactile feedback,
operating force 8N
Operating Life >250.000 cycles
KEY dimension 18 x 18 mm
ENCLOSURE
Housing Material Aluminium
Mounting in-dash with 4 screws M3 or 2.9 mm tapping screws
Connectors 4 way Terminal Block or Automotive - Deutsch DT06-6

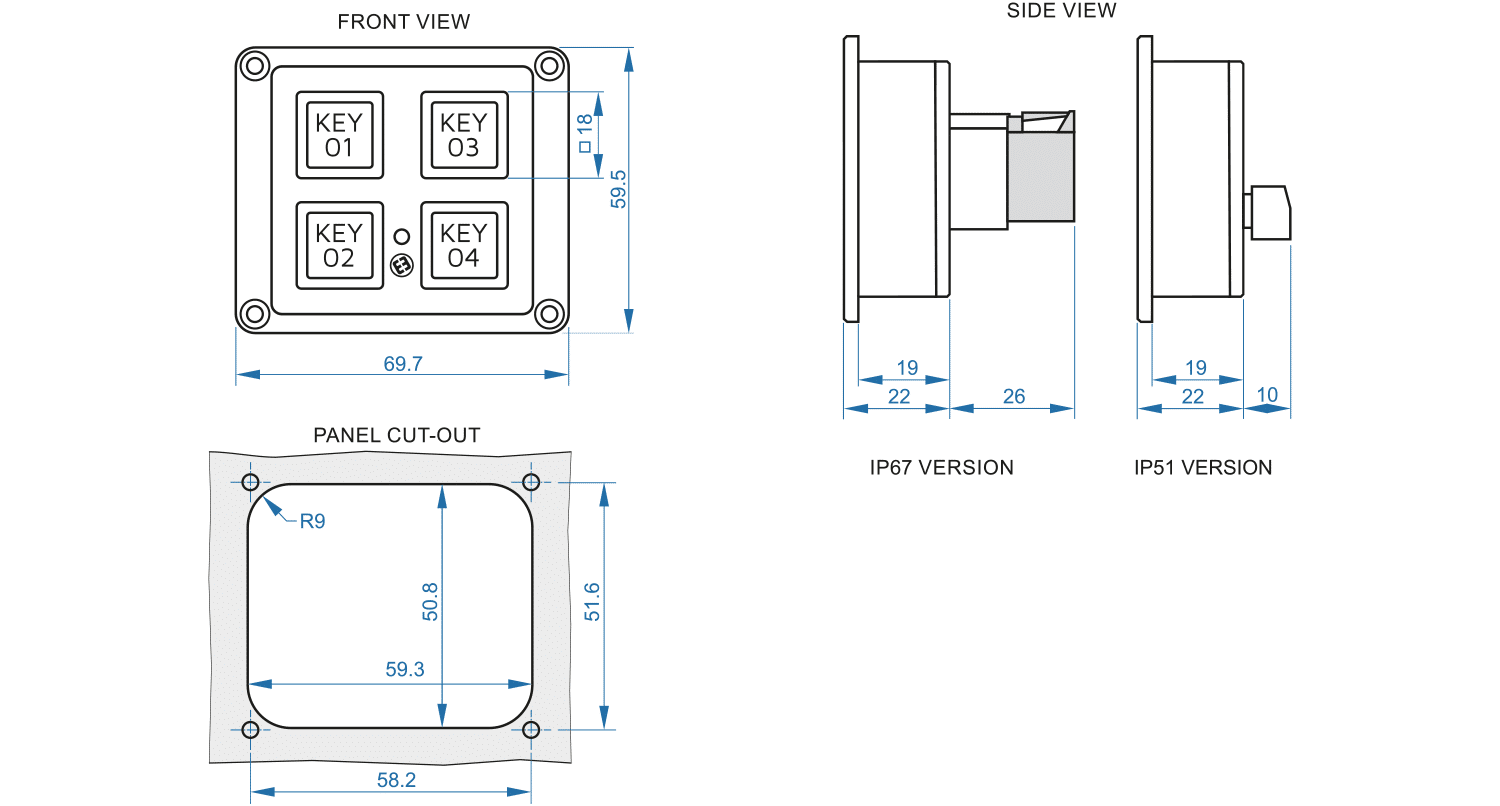

SIZE AND WEIGHT
W x H X D [mm] 69.7 x 59.8 x 19 without connector
Weight 0.12 kg (IP51), 0.14 kg (IP67)

How to order
KPM-C22 Keypad module, 4 colour RGB backlit keys,
(2 rows x 2 columns), IP51 connector
For more options please contact the supplier.
